cluck_daemon::messenger Class Reference

Handle messages from the communicatord. More...

#include <messenger.h>

Inheritance diagram for cluck_daemon::messenger:

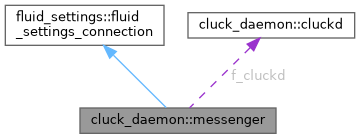

Collaboration diagram for cluck_daemon::messenger:

Public Types
typedef std::shared_ptr< messenger >	pointer_t

Public Member Functions
	messenger (cluckd *c, advgetopt::getopt &opts)
	The messenger initialization.
	messenger (messenger const &)=delete
virtual	~messenger () override
void	finish_parsing ()
	Finish handling command line options.
virtual void	fluid_settings_changed (fluid_settings::fluid_settings_status_t status, std::string const &name, std::string const &value) override
	Send the CLUSTER_STATUS to communicatord once ready.
messenger &	operator= (messenger const &)=delete
virtual void	ready (ed::message &msg)
	Messenger received the READY message.
virtual void	stop (bool quitting)
	Let the server know STOP or QUITTING was sent to us.

Private Attributes
cluckd *	f_cluckd = nullptr

Detailed Description

This class is an implementation of the TCP client message connection so we can handle incoming messages. We actually use the fluid-settings which itself uses the communicatord connection. All of the basic communication messages used by the communicatord and fluid settings are handled automatically.

This class handles the lock messages.

Definition at line 34 of file messenger.h.

Member Typedef Documentation

pointer_t

typedef std::shared_ptr<messenger> cluck_daemon::messenger::pointer_t

Definition at line 38 of file messenger.h.

Constructor & Destructor Documentation

messenger() [1/2]

cluck_daemon::messenger::messenger	(	cluckd *	c,
		advgetopt::getopt &	opts
	)

The messenger is the cluck daemon connection to the communicator server.

It sets up its dispatcher and calls cluckd functions whenever it receives a message.

Parameters

[in]	c	The cluck object we are listening for.
[in]	opts	The options received from the command line.

Definition at line 76 of file messenger.cpp.

References cluck_daemon::cluckd::msg_absolutely(), cluck_daemon::cluckd::msg_activate_lock(), cluck_daemon::cluckd::msg_add_ticket(), cluck_daemon::cluckd::msg_clock_stable(), cluck_daemon::cluckd::msg_cluster_down(), cluck_daemon::cluckd::msg_cluster_up(), cluck_daemon::cluckd::msg_drop_ticket(), cluck_daemon::cluckd::msg_get_max_ticket(), cluck_daemon::cluckd::msg_info(), cluck_daemon::cluckd::msg_list_tickets(), cluck_daemon::cluckd::msg_lock(), cluck_daemon::cluckd::msg_lock_activated(), cluck_daemon::cluckd::msg_lock_entered(), cluck_daemon::cluckd::msg_lock_entering(), cluck_daemon::cluckd::msg_lock_exiting(), cluck_daemon::cluckd::msg_lock_failed(), cluck_daemon::cluckd::msg_lock_leaders(), cluck_daemon::cluckd::msg_lock_started(), cluck_daemon::cluckd::msg_lock_status(), cluck_daemon::cluckd::msg_lock_tickets(), cluck_daemon::cluckd::msg_max_ticket(), cluck_daemon::cluckd::msg_server_gone(), cluck_daemon::cluckd::msg_status(), cluck_daemon::cluckd::msg_ticket_added(), cluck_daemon::cluckd::msg_ticket_ready(), and cluck_daemon::cluckd::msg_unlock().

messenger() [2/2]

cluck_daemon::messenger::messenger ( messenger const &  )

delete

~messenger()

cluck_daemon::messenger::~messenger ( )

overridevirtual

Definition at line 204 of file messenger.cpp.

Member Function Documentation

finish_parsing()

void cluck_daemon::messenger::finish_parsing

(

)

This function makes sure the fluid settings and communicator daemon have a chance to check the command line options and act on it.

Definition at line 214 of file messenger.cpp.

fluid_settings_changed()

void cluck_daemon::messenger::fluid_settings_changed ( fluid_settings::fluid_settings_status_t  status, std::string const &  name, std::string const &  value  )

overridevirtual

This function builds a message and sends it to communicatord.

The CLUSTER_UP and CLUSTER_DOWN messages are sent only when that specific event happen and until then we do not know what the state really is (although we assume the worst and use CLUSTER_DOWN until we get a reply).

Parameters

[in]	status	The status of the fluid settings object.
[in]	name	The name of the changing parameter.
[in]	value	The value of the parameter.

Definition at line 278 of file messenger.cpp.

operator=()

messenger & cluck_daemon::messenger::operator= ( messenger const &  )

delete

ready()

void cluck_daemon::messenger::ready ( ed::message &  msg )

virtual

Whenever we receive the READY message, we also receive our IP address as the "my_address" parameter. This gets copied in the cluckd object.

The function tells the fluid settings connection that the daemon is ready.

The cluck daemon uses the wall clock to synchronize the locks between servers so it requests the clock status from the communicator daemon. Once known to be stable, it's ready to start accepting locks.

Parameters

[in,out]

msg

The READY message.

Definition at line 235 of file messenger.cpp.

References f_cluckd, and cluck_daemon::cluckd::set_my_ip_address().

stop()

void cluck_daemon::messenger::stop ( bool  quitting )

virtual

This STOP and QUITTING messages are currently managed through this overridden virtual function.

Parameters

[in]

quitting

Whether STOP (false) or QUITTING (true) was received.

Definition at line 260 of file messenger.cpp.

References f_cluckd, and cluck_daemon::cluckd::stop().

Member Data Documentation

f_cluckd

cluckd* cluck_daemon::messenger::f_cluckd = nullptr

private

Definition at line 59 of file messenger.h.

Referenced by ready(), and stop().

---

The documentation for this class was generated from the following files:

• daemon/messenger.h
• daemon/messenger.cpp
