Declaration of the TLD file structures. More...

#include <stdint.h>
#include <iostream>

Include dependency graph for tld_file.h:

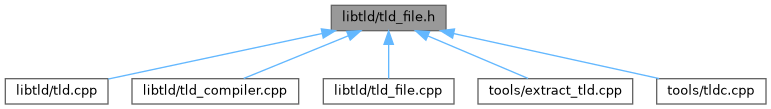

This graph shows which files directly or indirectly include this file:

Classes
class	auto_free_string

class	auto_free_tld_file

struct	tld_description
	[internal] The description of one TLD. More...

struct	tld_file

struct	tld_header

struct	tld_hunk

struct	tld_magic

struct	tld_string_length

struct	tld_string_offset

struct	tld_tag

Macros
#define	TLD_DESCRIPTIONS TLD_HUNK('D','E','S','C')

#define	TLD_FILE_VERSION_MAJOR 1

#define	TLD_FILE_VERSION_MINOR 0

#define	TLD_HEADER TLD_HUNK('H','E','A','D')

#define	TLD_HUNK(a, b, c, d) ((uint32_t)((a)\|((b)<<8)\|((c)<<16)\|((d)<<24)))

#define	TLD_MAGIC TLD_HUNK('R','I','F','F')

#define	TLD_STRING_LENGTHS TLD_HUNK('S','L','E','N')

#define	TLD_STRING_OFFSETS TLD_HUNK('S','O','F','F')

#define	TLD_STRINGS TLD_HUNK('S','T','R','S')

#define	TLD_TAGS TLD_HUNK('T','A','G','S')

#define	TLD_TLDS TLD_HUNK('T','L','D','S')

Enumerations
enum	tld_file_error { TLD_FILE_ERROR_NONE = 0 , TLD_FILE_ERROR_INVALID_POINTER , TLD_FILE_ERROR_POINTER_PRESENT , TLD_FILE_ERROR_CANNOT_OPEN_FILE , TLD_FILE_ERROR_CANNOT_READ_FILE , TLD_FILE_ERROR_UNRECOGNIZED_FILE , TLD_FILE_ERROR_INVALID_FILE_SIZE , TLD_FILE_ERROR_OUT_OF_MEMORY , TLD_FILE_ERROR_INVALID_HUNK_SIZE , TLD_FILE_ERROR_INVALID_STRUCTURE_SIZE , TLD_FILE_ERROR_INVALID_ARRAY_SIZE , TLD_FILE_ERROR_UNSUPPORTED_VERSION , TLD_FILE_ERROR_MISSING_HUNK , TLD_FILE_ERROR_HUNK_FOUND_TWICE }

Functions
const struct tld_description *	tld_file_description (struct tld_file const *file, uint32_t id)

const char *	tld_file_errstr (enum tld_file_error err)

void	tld_file_free (struct tld_file **file)

enum tld_file_error	tld_file_load (const char filename, struct tld_file *file)

enum tld_file_error	tld_file_load_stream (tld_file **file, std::istream &in)

const char *	tld_file_string (struct tld_file const file, uint32_t id, uint32_t length)

const struct tld_tag *	tld_file_tag (struct tld_file const *file, uint32_t id)

char *	tld_file_to_json (struct tld_file const *file)

Detailed Description

The older version of the libtld had a pre-compiled structure within the library. The main problem with that designed is that you can't quickly update the list of domain name TLDs. You have to recompile the whole library, generate a new package, install that new package.

The pros are of course that you only have to deal with one file (.so or .a or similar file for your OS).

Yet, the number of TLDs has been growing and changing a lot back and forth in the last 10 years or so and having a compressed external file will make it a lot faster and a lot easier to update the available TLDs.

The structures found here describe that external file. The basic format is IFF (like a WAVE file, sizes and other numbers will be in the endian of your computer, so watch out on that part).

At time of writing, I have these hunks:

File Magic (RIFF <size> TLDS) – the start of the file
Header (HEAD) – a header with a few parameters such as the maximum TLD level
Descriptions (DESC) – the array of descriptions
Strings (STRS, SLEN, SOFF) – one super-string; the file includes two hunks with offsets and sizes for each one of those strings
Tags (TAGS) – the tag attached to a domain

Definition in file tld_file.h.

Macro Definition Documentation

◆ TLD_DESCRIPTIONS

#define TLD_DESCRIPTIONS TLD_HUNK('D','E','S','C')

Definition at line 75 of file tld_file.h.

◆ TLD_FILE_VERSION_MAJOR

#define TLD_FILE_VERSION_MAJOR 1

Definition at line 67 of file tld_file.h.

◆ TLD_FILE_VERSION_MINOR

#define TLD_FILE_VERSION_MINOR 0

Definition at line 68 of file tld_file.h.

◆ TLD_HEADER

#define TLD_HEADER TLD_HUNK('H','E','A','D')

Definition at line 74 of file tld_file.h.

◆ TLD_HUNK

#define TLD_HUNK	(	a,
		b,
		c,
		d
	)	((uint32_t)((a)\|((b)<<8)\|((c)<<16)\|((d)<<24)))

Definition at line 70 of file tld_file.h.

◆ TLD_MAGIC

#define TLD_MAGIC TLD_HUNK('R','I','F','F')

Definition at line 72 of file tld_file.h.

◆ TLD_STRING_LENGTHS

#define TLD_STRING_LENGTHS TLD_HUNK('S','L','E','N')

Definition at line 78 of file tld_file.h.

◆ TLD_STRING_OFFSETS

#define TLD_STRING_OFFSETS TLD_HUNK('S','O','F','F')

Definition at line 77 of file tld_file.h.

◆ TLD_STRINGS

#define TLD_STRINGS TLD_HUNK('S','T','R','S')

Definition at line 79 of file tld_file.h.

◆ TLD_TAGS

#define TLD_TAGS TLD_HUNK('T','A','G','S')

Definition at line 76 of file tld_file.h.

◆ TLD_TLDS

#define TLD_TLDS TLD_HUNK('T','L','D','S')

Definition at line 73 of file tld_file.h.

Enumeration Type Documentation

◆ tld_file_error

enum tld_file_error

Definition at line 166 of file tld_file.h.

Function Documentation

◆ tld_file_errstr()

const char * tld_file_errstr ( enum tld_file_error err )

Definition at line 298 of file tld_file.cpp.

◆ tld_file_free()

void tld_file_free ( struct tld_file ** file )

Definition at line 490 of file tld_file.cpp.

◆ tld_file_load()

enum tld_file_error tld_file_load	(	const char *	filename,
		struct tld_file **	file
	)

Definition at line 275 of file tld_file.cpp.

◆ tld_file_load_stream()

enum tld_file_error tld_file_load_stream	(	tld_file **	file,
		std::istream &	in
	)

Definition at line 51 of file tld_file.cpp.
